Description

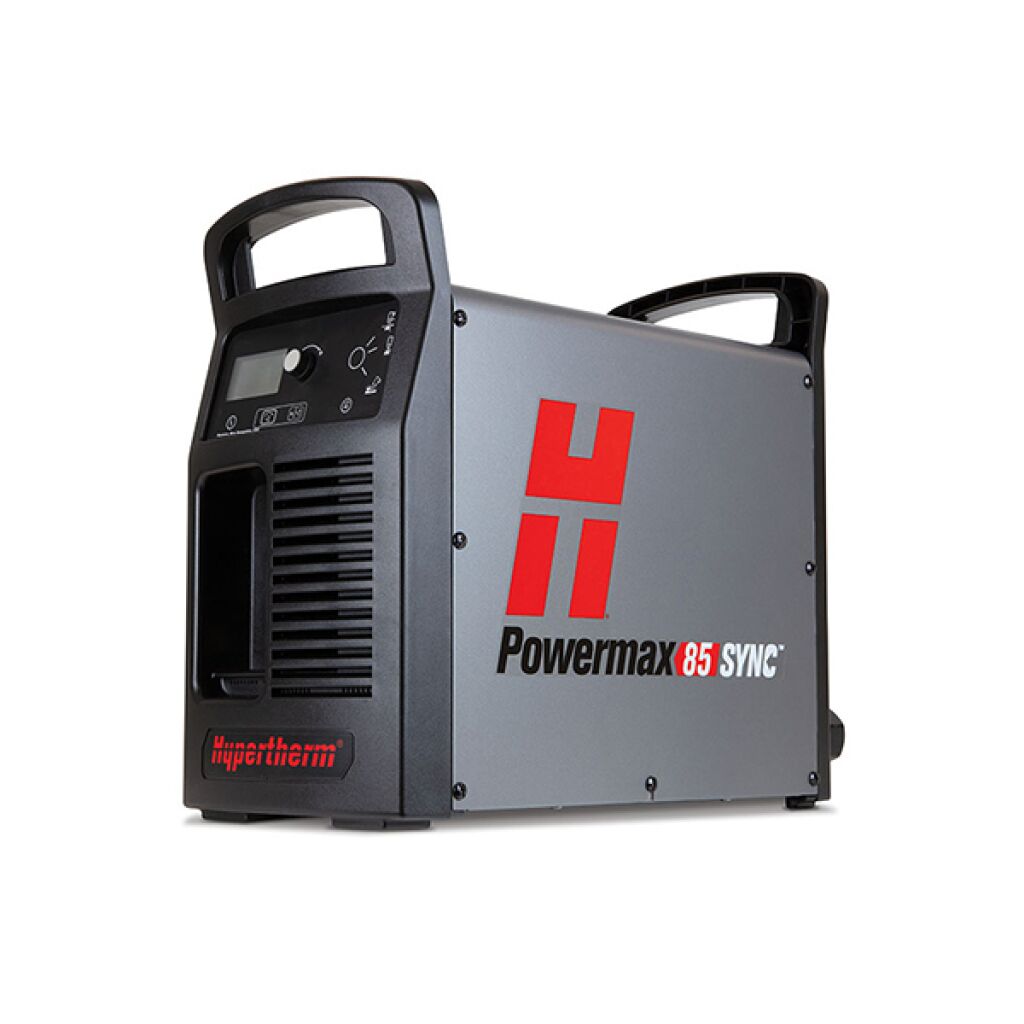

The Powermax85 combines the latest technological innovations and seven Duramax™ series torch options with 85 amps of cutting power to make it the premier 1″ air plasma system for handheld or mechanized cutting and gouging.
Applications
•Hand cutting
•Gouging
Input Voltages (± 10%) 400 V, 3-PH, 50-60 Hz
Input Current @12.2 kW 380/400 V, 3-PH, 20.5/19.5 A
Output current 25 – 85 A
Rated output voltage 143 VDC
Duty cycle @ 40°C (104°F) 60% @ 85 A, 380/400 V, 3-PH
100% @ 66 A, 380/400 V, 3-PH
Open circuit voltage (OCV) 270 VDC
Dimensions with handles 19.7″ (500 mm) D; 9.2″ (234 mm) W;
17.9″ (455 mm) H
Weight with 20′ (6.1 m) torch 62 lbs (28 kg)
Gas Supply Clean, dry, oil-free air or nitrogen
Suggested gas inlet flow rate/pressure Cutting: 189 l/min (400 scfh; 6.7 scfm) @ 85 psi (5.6 bar) Gouging: 450 scfh; 212 l/min (7.5 scfm) @ 70 psi (4.8 bar)
Input power cable length 10′ (3 m)
Power supply type Inverter – IGBT
